Product Description
When the original equipment throttle bodies on certain Chrysler, Dodge, and Jeep vehicles fail, it’s often due to moisture infiltration, worn sensor contacts, or excessive oil buildup. This upgraded Dorman OE FIX electronic throttle body is completely redesigned to eliminate those common sources of failure and provide longer and more reliable service. This all-new construction (not remanufactured) throttle body features a rugged aluminum housing, a Hall effect sensor, and a proprietary Sensor Shield shaft seal designed to better resist damaging moisture, oil, and other contaminants. A specially designed mounting gasket is included for a complete repair. As with any throttle body replacement, we recommend performing an idle relearn with an appropriate scan tool. Note that this unit is a replacement for certain vehicles that have a wiring harness ending with a male connector with a single row of pins as a result of a change by the original equipment manufacturer to their throttle body design. The female connector on this throttle body accepts only that male connector with the single row of pins. Please visually inspect the connector on the wiring harness on the vehicle being repaired to ensure you select the correct OE FIX throttle body. If the vehicle’s throttle body harness has a connector with dual stacked row of pins, please select instead our OE FIX electronic throttle body 977-025.
- Improved design – this electronic throttle body is all-new (not remanufactured) construction, with a corrosion-resistant aluminum housing and upgraded internal components for improved reliability
- Check your connector – fits male connector with single row of pins on wiring harness; for dual stacked pin row male connectors, we offer a different upgraded unit to replace the original factory unit

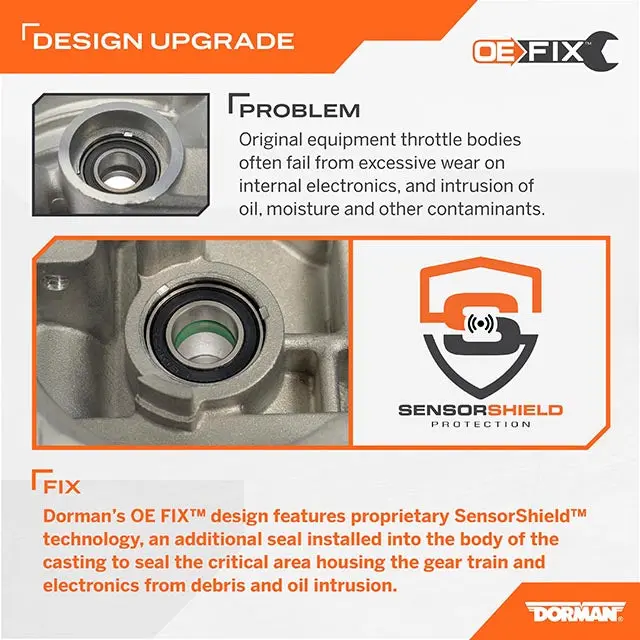

- Complete solution – features a proprietary Sensor Shield shaft seal to prevent leaks, a Hall effect sensor, and a gasket for a seamless installation
- Rigorously tested – corrosion resistance and reliability proven for over a million test cycles, and directly replaces the failure-prone throttle body on specified Chrysler, Dodge, and Jeep vehicles
Product Specifications
| Adjustable: | No |
|---|---|
| Airflow Rate: | 85.4 cfm |
| Bore Diameter: | 2.24 in |
| Connector/Terminal Type: | Blade |
| Electrical Connection Type: | Male |
| Fuel Injectors Included: | No |
| Fuel System Grade: | Gas |
| Fuel System Injection Type: | Gas |
| Fuel System Type: | Gas |
| Gasket Or Seal Included: | Yes |
| Housing Color: | Natural |
| Housing Material: | Aluminum/PBT |
| Idle Air Control Motor Included: | No |
| Inlet Diameter: | 2.68 in |
| Inlet Quantity: | 1 |
| Inlet Type: | Flanged |
| Installation Hardware Included: | No |
| Mounting Hardware Included: | No |
| Outlet Diameter: | 2.24 in |
| Outlet Quantity: | 1 |
| Outlet Type: | Non-Flanged |
| Package Contents: | 1 Throttle Body; 1 Gasket |
| Package Quantity: | 1 |
| Packaging Type: | Box |
| Terminal Count: | 6 |
| Throttle Body Finish: | Silver |
| Throttle Body Material: | Aluminum |
| Throttle Body Mounted: | No |
| Throttle Body Spacer Included: | No |
| Throttle Body Type: | Electronic |
| Throttle Position Sensor Included: | Yes |
| Venturi Quantity: | 0 |
OE Numbers
| 68366012AA | CHRYSLER |
|---|---|
| 68366012AB | CHRYSLER |
| 68420395AA | CHRYSLER |
| 68420395AB | CHRYSLER |
Fitment
| Year | Make | Model | Configuration | Positions | Application Notes |
|---|---|---|---|---|---|
| 2007-2009 | Dodge | Caliber | L4 110 1.8L (1798cc) | Single Row Connector |
