Description

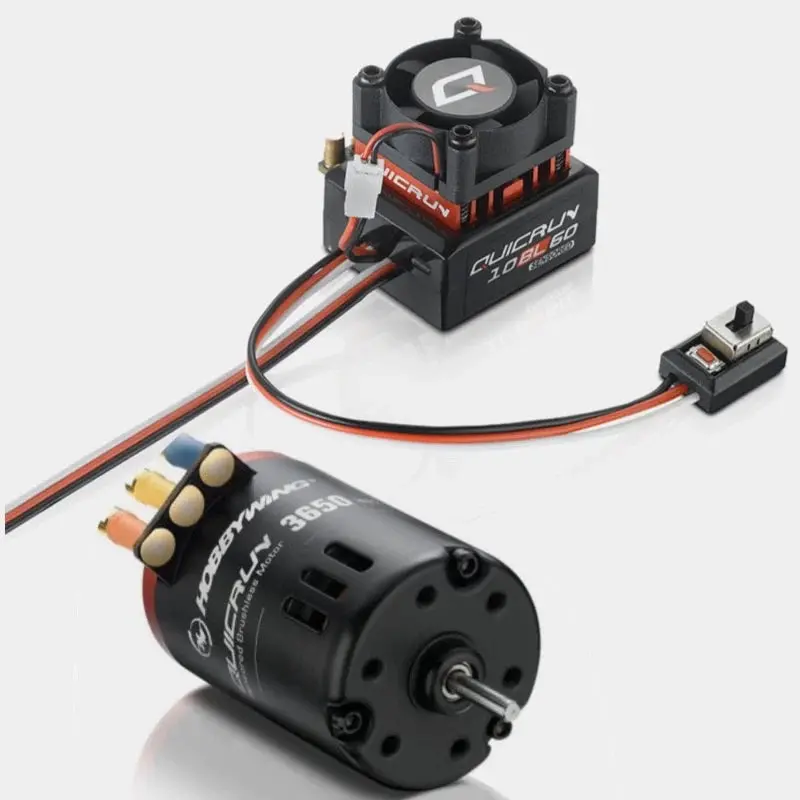

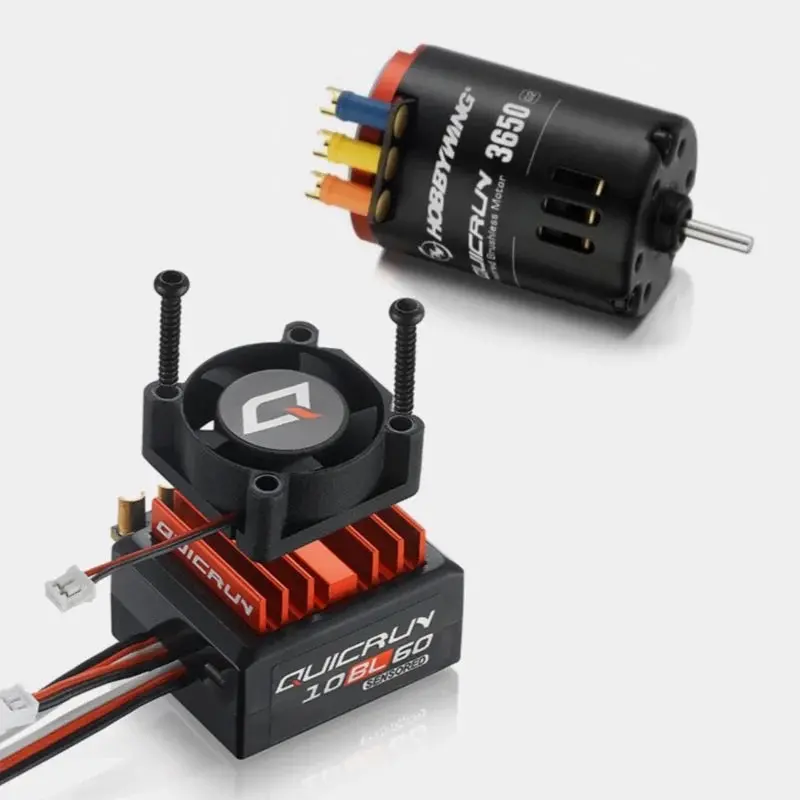

Quicrun 10BL60 Sensored ESC + QRC10SD G2 Motor Combo
ESC Specifications
Dust-proof for all-weather races.
1/10 & 1/12 On-road / Off-road / F1 / Drift car race
Street race for fun / Club racing / STOCK race with 0 timing / Drift car race
- High performance but low price- users can own this reliable race-ready ESC at an affordable cost.
- Compact size, suitable for various car chassis.
- Auto identification system can recognize sensored or sensorless brushless motors automatically.
- Smooth operation and plentiful adjustment options. Suitable for most kinds of competitions.
- 8 steps of timing adjustment greatly increase the output power of the motor and unlock its maximum potential.
- Proportional brake with 4 steps of Maximum Brake Force adjustment, 8 steps of Drag Brake Force adjustment and 4 steps of Initial Brake Force adjustment.
- 9 steps of acceleration (punch) adjustment, from “soft” to “very aggressive” to fit various of cars, tires and tracks.
- Multiple protections: Low voltage cut-off protection for LiPo or NiMH battery / Over-heating protection / Throttle signal loss protection / Motor Lock-up protection.
- One-button sets the ESC. Easily reset all parameters to factory default settings.
- Compatible with optional device —- the portable Digital LED Program Card, especially convenient for outdoor use.
| Model / SKU | QUICRUN-10BL60 Sensored / 30108000 |
| Cont./Peak Current/ Resistance | 60A/380A/0.0008Ω |
| Motor Type Supported | Sensored / Sensorless Brushless Motor |
| Car Applicable | 1:10 On-road/Off-road/Buggy/Monster |
| Motor Limit | For 2S LiPo or 4-6 cell NiMH: ≥8.5T(1/10 On-road), ≥13.5T(1/10 Off-road) *Note 1 For 3S LiPo or 8-9 cell NiMH: ≥13.5T(1/10 On-road), ≥17.5T(1/10 Off-road) *Note 1 |
| Battery | 4-9 cell NiMH, 2-3S LiPo |
| BEC Output | 6V/2A (Linear Mode) |
| Size/ Weight | 33mm(L)*28mm(W)*31.5mm(H, with cooling fan) 59g (with wires, without cooling Fan) |
| External Program Port | Available |
Motor Specifications

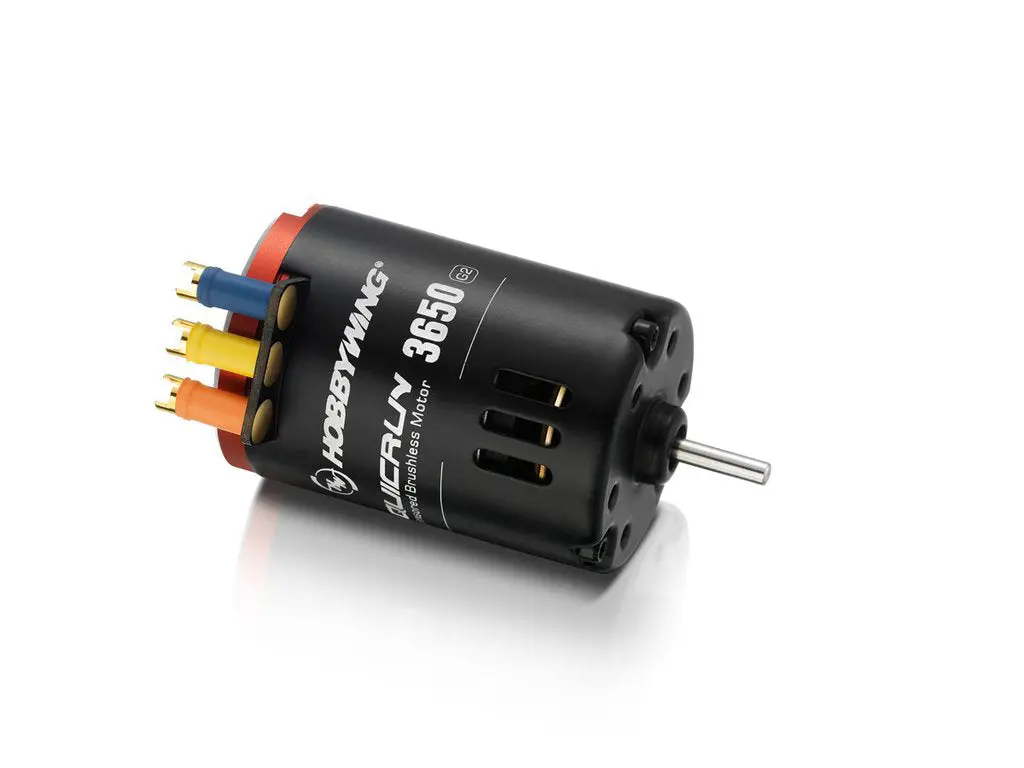

QR 3650 SD 2 POLE for 1:10 & 1:12 Cars & Trucks (SPORT)
High Efficiency means more POWER while keeping TEMP low!1/10th, 1/12th On-road (Race or drift Touring cars, F1, M vehicles and etc.) & Off-road (Buggies/2WD SCTs & Trucks) STOCK/SPORT Class Competitions (About Motors’ T counts, please refer to rules regulated by race organizers), Beginners for practice, and Rock Crawlers (applicable to 21.5T,25.5T motors)
- Built-in Hall sensor brings drivers an amazing sense of control.
- Top-quality components: heat-resistant magnet, heat-resistant wires and name-brand bearings.
- Dustproof design where motor leads exit.
- Features a gold-plated lockable connector which can be fastened by screws, eliminating the possibility of losing connections.
- Detachable structure is easy to clean and maintain, greatly prolonging the service life of the motor.
